Corrugated metal is a lightweight building material that provides remarkable rigidity given its thin profile. That strength makes it an ideal addition to concrete floors that need additional reinforcement. A floor deck, also known as a composite metal deck, is a ribbed sheet of metal that is specifically designed to support concrete. It contains holes in the metal that hold the reliefs, giving the concrete something to hold on to.
The metal floor deck is only used to support concrete on a floor deck. When pouring concrete on the metal platform, it is easier to level the ground and makes concrete less likely to crack. The use of a metal floor deck also provides the ability to pour a larger deck due to the support it provides. The corrugated steel platform is a cold-rolled steel sheet that is supported by beams and joists.
These metal roofing sheets are used in the construction of new roofs and floors. Learn more about The Anatomy of Metal Deck. Paul Rubio is the Vice President and Owner of Western States Metal Roofing. He has been in the metal roofing industry for 25 years.
WSMR is a manufacturer of metal ceilings, wall panels and metal cladding. We have colors and finishes that no one else has with almost 100 different colors in stock. Our selection of color and finish options is probably the largest in the industry. The metal platform is used in a wide variety of commercial and industrial applications.
Includes steel ceiling and floor covers, aluminum floor covers and acoustic metal covers. The metal platform usually has a ribbed or corrugated profile, which is achieved through a process called profiling. Large metal sheets are extracted from the rolls and driven through rolling dies that create the grooved profile. The metal platform is used for floors and ceilings, and also for the creation of forms for concrete.

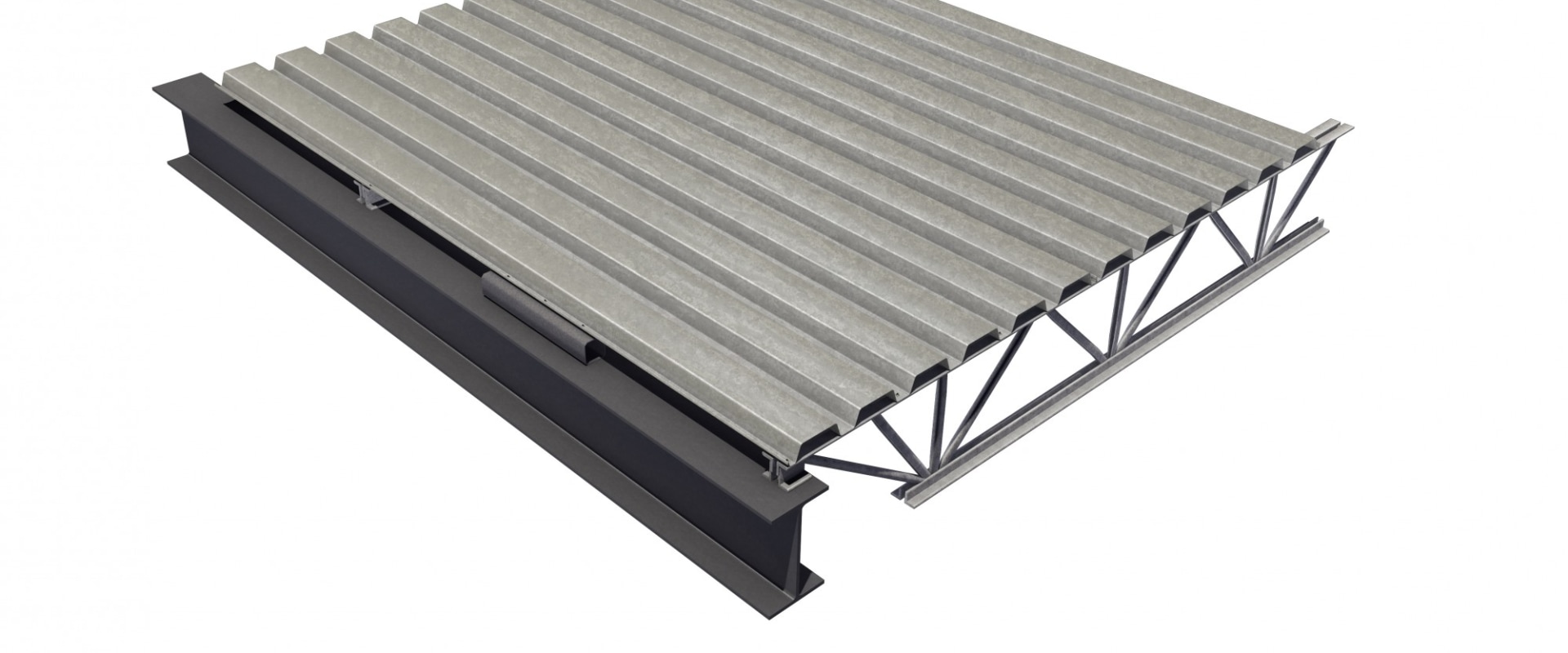

The metal platform is installed by pneumatically driven screws or pins and can also be welded. The steel platform is a cold-formed corrugated steel sheet supported by steel joists or beams. It is used to support concrete or insulating membrane of a roof. It was developed to provide a structurally efficient product for use in ceiling and floor systems.
If you need structural concrete and a composite floor deck system, you will need a metal floor deck. When working with metal decking, it is important to know the difference between a corrugated metal floor deck and a roof deck. The length of the metal platform spans will depend on the type of metal platform and the manufacturer's specifications. Canam has a wide variety of products for each type of steel platform to meet the needs of almost any project and make steel platform a smart and economical choice.
See the Verco floor platform catalog for product details, load tables, floor deck accessories, finishes, floor platform accessories and design examples. Metal decking is a great choice as a roof or floor covering because it is economical, lightweight, installs quickly and is easy to install. Some other factors that affect the span of the metal platform are the gauge of the platform, the grade of steel and, for the metal floor platform, the depth. For the non-cellular cover there are perforations in the bands with fiberglass batts installed on the top of the platform on the low flutes.
A floor deck is used solely to place concrete as a support, while a roof deck does not have the ability to provide that support. The Q platform is not available today and when people ask about Q Deck, it's usually just a generic term for metal pallets. When it comes to steel grade, the metal platform with a higher grade will generally be able to span more than the metal platform with a lower grade. See the Verco roof cover catalog for product details, load charts, roof cover accessories, finishes, roof cover accessories and design examples.
By analogy, the grooved platform is equivalent to the web of a horizontal beam whose flanges are the perimetral structural members connected to the platform. The purpose of the metal platform is to support the insulating membrane of a roof or to support and bond with the concrete to create a composite metal floor platform. The composite deck is designed for use with structural concrete, and is manufactured with mechanical reliefs on the belts to create a mechanical and chemical bond between the platform and the concrete. .
